MST-AC
Mobile Security Trailer.
Total site protection. One app.
A fully Alarm.com for Business–integrated mobile security trailer. Live video, the on-site security system, and the trailer's smart locks all live in one Alarm.com app — so the same login that arms the site also pulls up every camera. Solar-powered, towable, and available to rent through the dealer rental program, with no upfront capital to buy and maintain units.
Designed to run unattended.
- Fully Alarm.com for Business integrated — video, intrusion, and access in one app

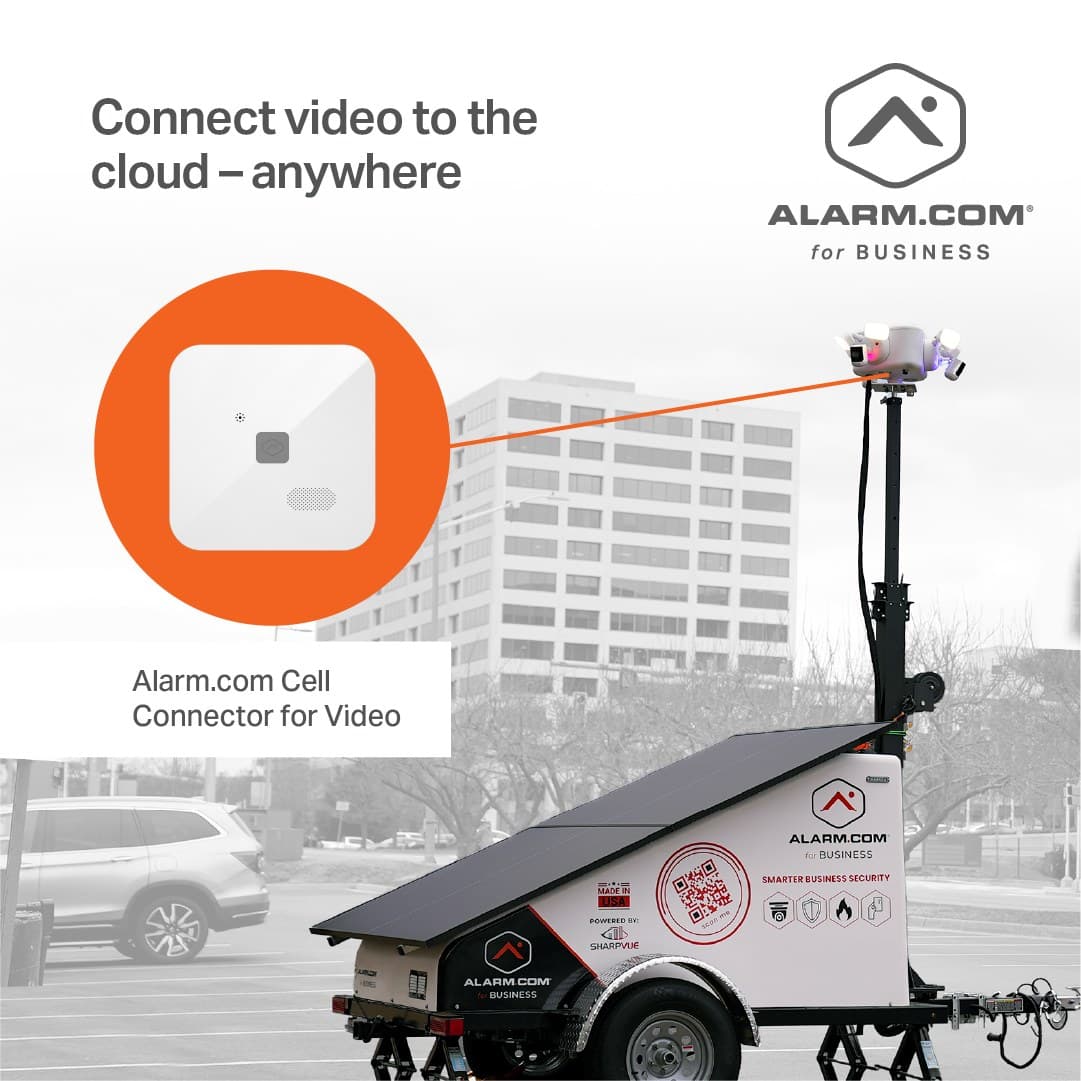

- Live video to the cloud anywhere via the Alarm.com Cell Connector for Video
- Arm and disarm the on-site security system remotely
- Smart-lock control — lock or unlock the trailer door from your phone
- Solar-charged — deploys with no grid power
- Mast-mounted camera and speaker for active talk-down deterrence
- Available to rent through the dealer rental program — no upfront capex
- Made in the USA
Total site protection, in one app.

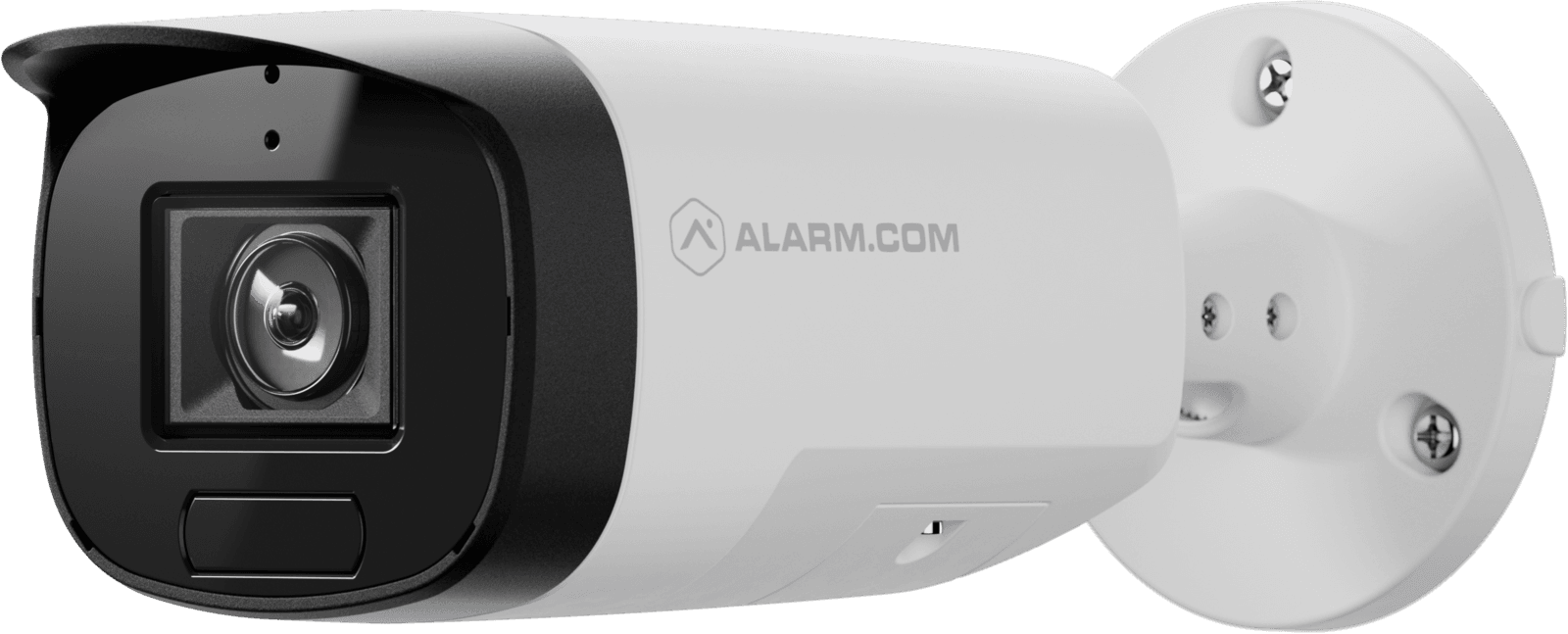

ADC-VC7398PA
PRISM 8MP Varifocal Bullet
8MP detail, in full color, day and night.
The PRISM Series 8MP Varifocal Bullet is the camera built for the Alarm.com Mobile Security Trailer. Ultra HD 8MP resolution captures every detail, VividNight™ keeps footage in true color after dark, and proactive video deterrence with two-way audio lets operators talk down an intruder before an incident escalates — all inside the same Alarm.com for Business app that arms the site and runs the trailer's locks.
- 8MP Ultra HD resolution (3840 × 2160)
- VividNight™ full-color video in low light
- Varifocal lens — adjustable field of view at install
- Proactive video deterrence with full-duplex two-way audio
- Built-in IR illumination to 40m
- Integrated video analytics
- Single-cable PoE (IEEE 802.3af) install
- NDAA-approved hardware
- Rugged outdoor housing — IP66 · IP67 · IK10 · NEMA 4X
- Fully integrated with the Alarm.com for Business platform
- Image Sensor
- 1/1.8″ SONY STARVIS 2 CMOS
- Max Resolution
- 3840 × 2160 (8MP)
- Lens
- Varifocal
- Field of View
- H110.4° – 45.1° · V57.9° – 25.4° · D133.9° – 51.8°
- Range of Motion
- Tilt 80° / Rotation 350°
- Min Illumination
- Color: 0.02 lux @ F1.6 · B/W: <0.005 lux @ F1.6 · 0 lux with IR on
- Low-Light
- VividNight™ full-color night video
IR & Night Vision
- Built-in IR
- Up to 40m range
Audio & Deterrence
- Two-way Audio
- Full duplex with built-in mic and line-level I/O
- Deterrence
- Proactive video deterrence (talk-down)
- Analytics
- Integrated video analytics
Connectivity & Power
- Network
- 10/100 Mbps Ethernet (RJ-45)
- Power
- PoE — IEEE 802.3af
- Consumption
- Max 12.4W (IR on) / 9.6W (IR off)
- Platform
- Alarm.com for Business
Physical & Environment
- Operating Temperature
- -35°C ~ 60°C (IR off) · -35°C ~ 50°C (IR on)
- Humidity
- Up to 98% RH (non-condensing)
- Dimensions
- Ø92 × 258.5mm
- Weight
- 1.04 kg
Compliance
- Ingress Protection
- IP66 · IP67 · IK10 · NEMA 4X
- Compliance
- NDAA-approved
The whole sheet.
Some specs are still being finalized — drop-and-deploy.
Platform
- Monitoring app
- Alarm.com for Business
- Capabilities
- Video · Intrusion · Access control
- Users
- Multi-user from a single login
Power
- Solar Array
- 1,170 W roof-mounted panel
- Battery
- 200 Ah @ 48V
- Recharge Time
- 4-6 hours of sunlight (full)
- Runtime
- 8-10 days on a full charge
Connectivity
- Primary
- Alarm.com Cell Connector for Video
- Uplink
- Cellular video to the cloud — anywhere
Cameras & Sensors
- Mast
- Camera + speaker (talk-down)
- Access control
- Smart lock on trailer door
- Intrusion
- Alarm.com security system
Physical
- Chassis
- Single-axle towable trailer
- Trailer Length
- 12 ft long × 5 ft 8 in wide
- Weight
- 1,600 lb
- Mast Height
- 22 ft
- Towing Class
- Class 1 minimum · Class 2 recommended
Compliance & Trust
- Country of Origin
- United States
Monitored in MySharpvue.
Your video footage lives in the Alarm.com app — but the unit itself is watched through MySharpvue, the Sharpvue fleet portal. Every Mobile Security Trailer reports where it is, how it's powered, and whether every camera, gateway, and radio is healthy — and it comes with the unit, with no add-on fees or per-unit licensing.
- Live fleet map
- Every deployed unit is a live pin on one map, with its GPS position updated in near real time.
- Power & connectivity health
- Battery voltage, solar harvest, load power, and cellular signal — every reading, for every unit.
- Proactive alerts
- Catch a unit that drops offline or loses power before it becomes a gap in coverage — or a service call.
- ODIN, your AI engineer
- The built-in AI agent diagnoses issues in plain language and runs remote fixes. No truck roll required.
Your data stays yours.
Some surveillance providers pool footage and vehicle data across their entire customer network. Sharpvue doesn't. Every unit works for one customer — yours.
- Private to your account
- Video and events are isolated to the customer the unit is deployed for. Footage is never pooled, never shared across accounts, and never sold.
- Detection, not recognition
- Sharpvue AI flags that a person, vehicle, or license plate is present so events stand out. It does not read, store, or share plate numbers.
- No plate database
- There is no shared license-plate database behind Sharpvue units — no cross-customer lookup network and no third-party data feeds.
