THERMALBi-spectrum Thermal.

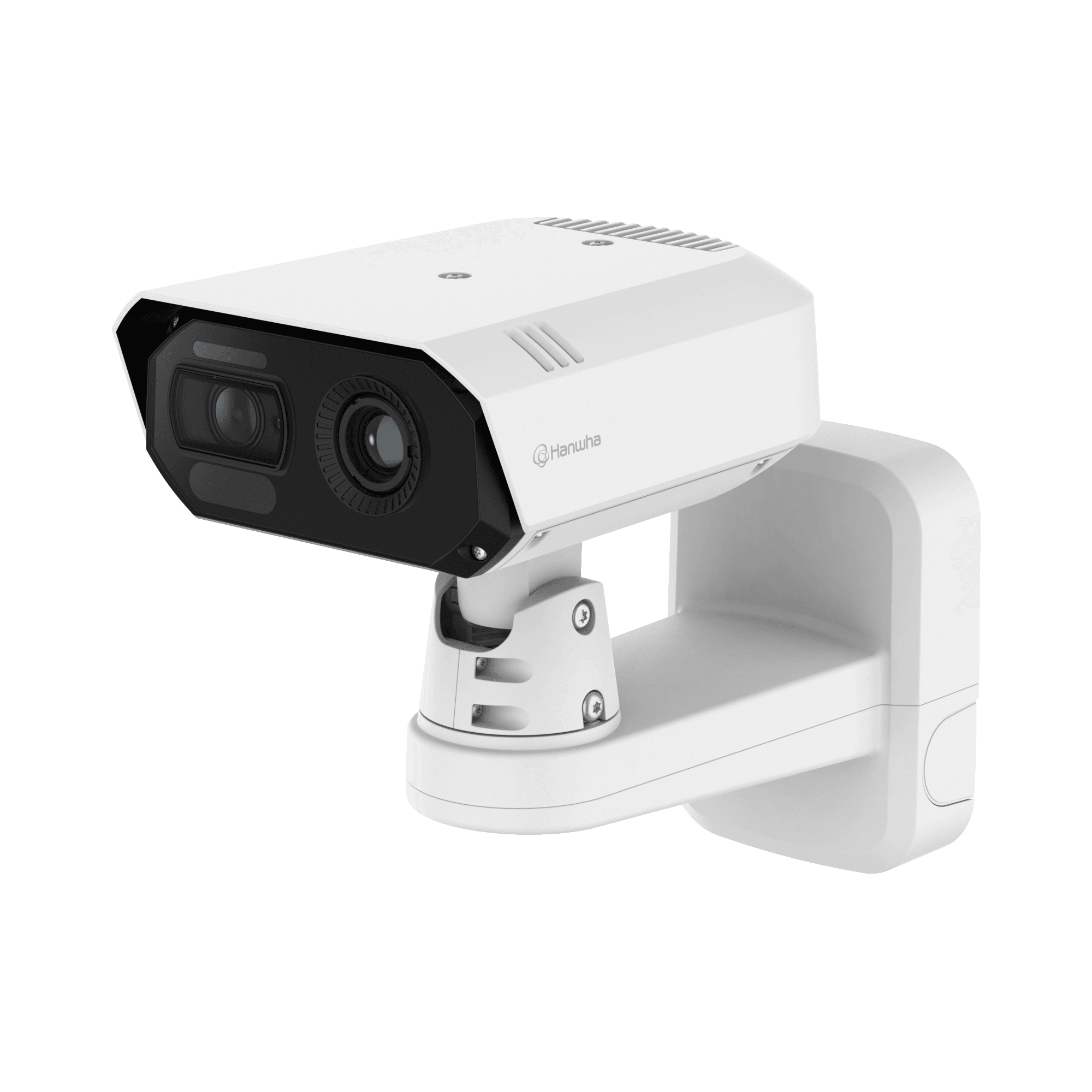

TNM-C4942TDR
Bi-spectrum Thermal.
See heat and detail, in the same frame.
A VGA uncooled thermal sensor paired with an 8MP visible camera, each with its own AI engine — detect intruders by heat signature in total darkness, confirm them in 4K color, and flag abnormal temperatures from -20°C to 130°C. Built for perimeter, EV charging, and critical-infrastructure protection where early heat detection matters.
Key Capabilities
Built around the way you actually deploy.
- Bi-spectrum — 640 × 480 VGA thermal + 8MP visible imaging
- Independent AI engine on both thermal and visible channels
- Abnormal temperature detection, -20°C to 130°C
- Uncooled microbolometer thermal sensor · 9.1mm F1.0 lens
- Visible 4.4 – 9.3mm motorized zoom · 112° – 47° FOV
- 850nm IR illumination up to 30m
- FIPS 140-2 Level 2 with TPM for federal-grade security
- IP66 / IP67 · IK10 · NEMA 4X rugged enclosure
AI & Analytics
Edge intelligence, built in.
This Hanwha Vision camera runs AI analytics on-device — alerts and metadata generated at the edge, not in the cloud.
- Object detection (thermal + visible channels)
- Virtual line — crossing & direction
- Virtual area — intrusion
- Virtual area — loitering
- Virtual area — enter / exit
- Abnormal temperature detection
- Motion detection
Deployments
Where this camera earns its keep.
Critical infrastructure protectionEV charging & energy-asset monitoringPerimeter intrusion detection in total darknessFire & overheat early-warningSubstations and utility yards
Specifications
The whole sheet.
Thermal Imaging
- Sensor
- Uncooled microbolometer
- Resolution
- 640 × 480 (VGA)
- Lens
- 9.1mm @ F1.0
- Field of View
- H50°
- Max Frame Rate
- 8 fps
- Temperature Range
- -20°C ~ 130°C
- Detection
- Abnormal temperature detection
Visible Imaging
- Sensor
- CMOS
- Max Resolution
- 3840 × 2160 (8MP)
- Lens
- 4.4 – 9.3mm motorized zoom @ F1.3 – F2.15
- Field of View
- H112° – H47°
- Max Frame Rate
- 30 fps
IR & Night Vision
- IR Illumination
- 850nm, up to 30m
- Low-light Detection
- Thermal imaging in zero light
Video & Audio
- Compression
- H.265 / H.264 / MJPEG
- Channels
- Thermal + visible, independent streams
Power & Environment
- Environmental Rating
- NEMA 4X · NEMA TS 2
- Ingress Protection
- IP66 / IP67 · IK10
Security & Compliance
- Cybersecurity
- FIPS 140-2 Level 2 · TPM
- Manufacturer
- Hanwha Vision
