PANORAMICPanoramic 180°.
SV-C8477-HPG1
Panoramic 180°.
Seamless 180° View, Brilliant in Every Color.

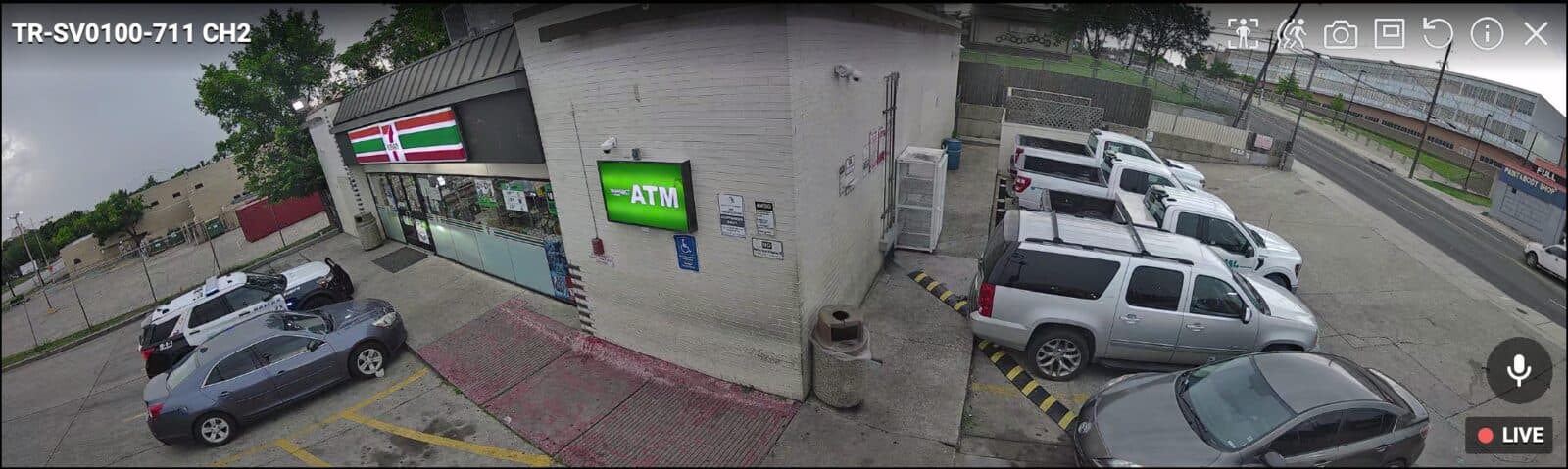

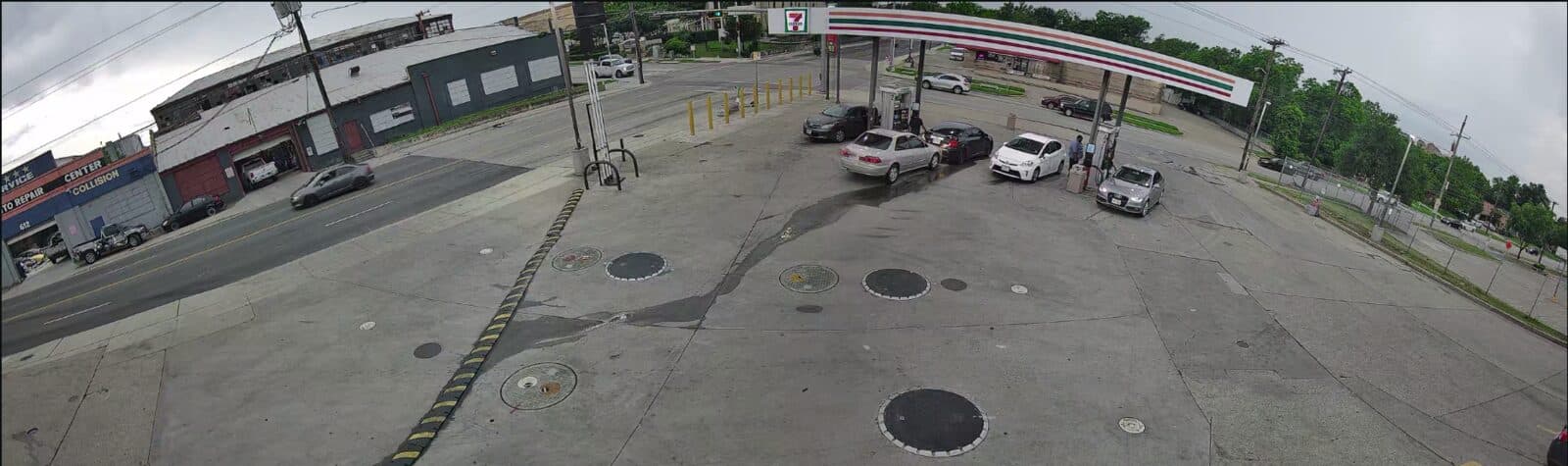

Dual 4MP sensors and Dynamic FusionXpert stitching deliver a uninterrupted 180° panoramic view with TrueColor low-light performance — engineered for wide-area situational awareness without blind spots.
Key Capabilities
Built around the way you actually deploy.
- 2 × 4MP @ 30fps dual sensor configuration
- Seamless 180° dynamic stitched panoramic view
- Smart Hybrid Light for optimal visibility and security
- F1.0 super aperture & 1/1.8″ sensor for TrueColor vision
- 8 advanced AI VCA events
- Independent strobe light for proactive deterrence
- Smart e-PTZ auto-tracking
- NDAA compliance with TPM 2.0 security
- IP67 & IK10 industrial-grade enclosure
AI & Analytics
Edge intelligence, built in.
Every Sharpvue camera runs VCA 2.0 analytics on-device — alerts and metadata generated at the edge, not in the cloud.
- Intrusion Detection
- Region Entrance
- Region Exiting
- Advanced Motion Detection
- Line Crossing
- Loitering
- Object Left
- Object Removed
- Object & vehicle counting (line crossing, up to 4 regional zones)
- Heat map with behavior analysis
- Audio alarm & tamper detection
- ePTZ auto-tracking for people and vehicles
Deployments
Where this camera earns its keep.
Retail surveillanceTraffic monitoringConstruction sitesParking lotsTemporary event securityBuilding & campus panoramic coverage
Specifications
The whole sheet.
- Image Sensor
- Dual 1/1.8″ Progressive Scan CMOS
- Max Resolution
- 5120 × 1520
- Lens
- 4mm @ F1.0, M16 mount
- Field of View
- H180° / V58°
- Min Illumination
- Color: 0.0005 Lux (F1.0, AGC ON) · B/W: 0 Lux with IR on
- WDR
- 140dB Super WDR
- Day/Night
- Day / Night / Auto / Customize
Frame Rate
- Primary stream
- 30fps @ 5120 × 1520 (60Hz) · 25fps @ 5120 × 1520 (50Hz)
- Secondary stream
- 30fps @ 1280 × 380 / 960 × 288 / 736 × 224 / 640 × 190
- Tertiary stream
- 30fps @ 1920 × 576
- ePTZ stream
- 30fps @ 1920 × 1080
Lighting
- IR Lights
- 4 × 850nm, up to 30m
- White Lights
- 2 ×, up to 25m
- Modes
- IR · White · Smart Switch
DORI Distance
- Detect
- 62.7m
- Observe
- 24.7m
- Recognize
- 12.3m
- Identify
- 6.2m
Video & Audio
- Compression
- H.265+ / H.265 (HEVC) / H.264+ / H.264 / MJPEG
- Bit Rate
- 16Kbps – 16Mbps (CBR / VBR)
- Audio Input
- Built-in microphone
- Audio Output
- 1 × Audio Out
- Audio Compression
- G.711 / AAC / G.722 / G.726
- Sampling Rate
- 8 / 16 / 32 / 44.1 / 48 KHz
Connectivity & Storage
- Network
- 1 × RJ45 10M/100M Ethernet
- Storage
- Micro SD/SDHC/SDXC up to 1TB · NAS (NFS, SMB/CIFS) · ANR
- Alarm I/O
- 1 input / 1 output
- Protocols
- IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, VPN, SIP, LLDP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
- Integration
- ONVIF Profile G, M, S, T
Power & Environment
- Power Input
- PoE+ (802.3at) / DC 12V / 2A ±20%
- Consumption
- Min 5W (PoE+) / Max 15W (PoE+)
- Operating Temperature
- -40°C ~ 60°C
- Operating Humidity
- 0 – 95% (non-condensing)
- Weight
- 1.5 kg
- Dimensions
- Ø160mm × 128mm
Compliance
- Ingress Protection
- IP67 · IK10
- Compliance
- NDAA · TPM 2.0
- Certifications
- CE-EMC (EN 55032, EN 55035, EN 61000) · FCC (PART 15B) · CE-LVD (EN IEC 62368-1) · CE-RoHS
- Warranty
- 3 Years standard · 5 Years optional
