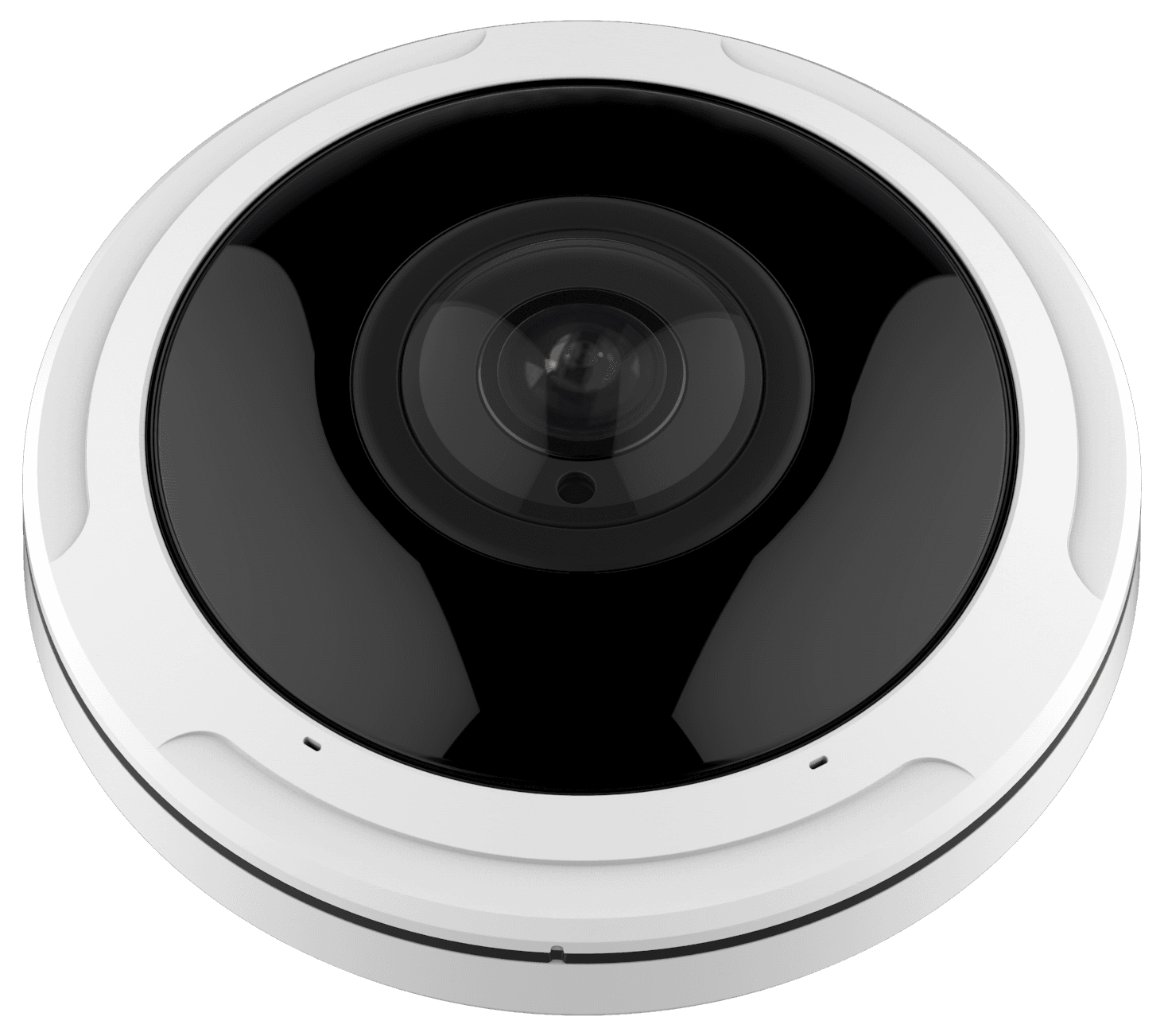

FISHEYEFisheye 360°.
SV-C9674-PA
Fisheye 360°.
360° panoramic view with zero blind spots.
12MP fisheye optics with 11 dewarping modes and on-board people analytics — a single ceiling-mount sensor that covers four cameras' worth of ground, with heat-map and counting baked in.
Key Capabilities
Built around the way you actually deploy.
- 360° panoramic coverage equal to 4+ conventional cameras
- 12MP resolution with 1/1.7″ progressive-scan sensor
- AI deep-learning analytics powered by VCA 2.0
- Fisheye auto-tracking across the full panorama
- Advanced heat map & people-flow reporting
- 11 client-side dewarping modes (1O, 1P, 2P, 4R, 1O3R, 1P1R, 1P4R, 1P6R, 1O8R)
- Smart IR II with 3 high-beam + 3 low-beam LEDs
- IR anti-reflection panel for enhanced clarity
- Bundle-stream + multi-channel video output for VMS compatibility
- IP67 weatherproof · IK10 vandal-resistant
- NDAA-compliant build
AI & Analytics
Edge intelligence, built in.
Every Sharpvue camera runs VCA 2.0 analytics on-device — alerts and metadata generated at the edge, not in the cloud.
- Region Entrance
- Region Exiting
- Advanced Motion Detection
- Tamper Detection
- Line Crossing
- Loitering
- Object Left
- Object Removed
- People counting (entry/exit, up to 4 detection zones)
- Heat map analysis
- Auto-tracking across panoramic view
Deployments
Where this camera earns its keep.
Retail floor coverage & shopper analyticsEntry/exit monitoring with people countingSingle-camera lobby & open-plan office coverageCrowd flow & heat-map analysisWarehouse & logistics aisle coverage
