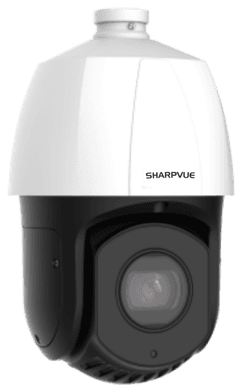

SV-C5342-X25RPG1
Speed Dome 25X.
Long reach on a trailer's power budget.
A 25X PTZ that averages 6.68W over 24 hours and runs off DC 12V with ±30% tolerance — built for the solar-and-battery power budget of a mobile trailer, with an on-board power meter, battery alarms over RS485, and gyroscope self-calibration for a camera that lives on top of a mast.
Built around the way you actually deploy.
- 6.68W 24-hour average draw
Idles at 3.46W on DC and averages 6.68W across a full day — roughly half the standing draw of the 36X, which is what makes it viable on a solar-charged battery bank.
- DC 12V ±30% or PoE Class 4
A ±30% input window rides out the voltage sag of a battery bank at the end of a cloudy week instead of dropping the camera offline.
- One-click low-power mode
Drops the camera into a reduced-draw profile in a single action — the difference between a trailer that makes it through a bad weather week and one that doesn't.
- On-board power metering
Reports real-time, average, and peak draw plus usage history from 30 minutes to monthly — you can see what the camera is actually costing the battery.
- Battery status & alarms over RS485
Speaks the Sharpvue Solar Power protocol natively, so battery state and low-charge alarms surface alongside the video instead of in a separate system.
- Gyroscope self-calibration
PT auto-correction and gyroscope-enhanced EIS keep presets true and the image steady on a mast that moves in the wind.
- 25X optical zoom · 8X digital zoom
- 5MP 1/2.8″ progressive-scan CMOS · 0.008 Lux color
- 120dB Super WDR · Smart IR II to 120m
- 300 presets · 8 patrols (48 presets each) · 4 patterns
- PTZ auto-tracking & 3D positioning
- On-board GPS
- -40°C to 70°C operating range
- IP66 weatherproof · IK10 vandal-resistant (optional)
- NDAA-compliant build
Edge intelligence, built in.
Every Sharpvue camera runs VCA 2.0 analytics on-device — alerts and metadata generated at the edge, not in the cloud.
- Intrusion Detection
- Region Entrance
- Region Exiting
- Advanced Motion Detection
- Line Crossing
- Loitering
- Object Left
- Object Removed
- Intelligent PTZ auto-tracking for people and vehicles
- Smart PTZ motion detection — pan, tilt and zoom to the motion automatically
- Face detection & attributes (age, gender, glasses, mask, cap)
- Clothing color (upper/lower) & vehicle type classification
- Up to 50 simultaneous targets
- People & vehicle counting by line crossing · regional counting (up to 4 areas)
- Hard-hat (PPE) detection
- Fall detection
- Violence detection
- Automatic privacy mosaic over faces and bodies
