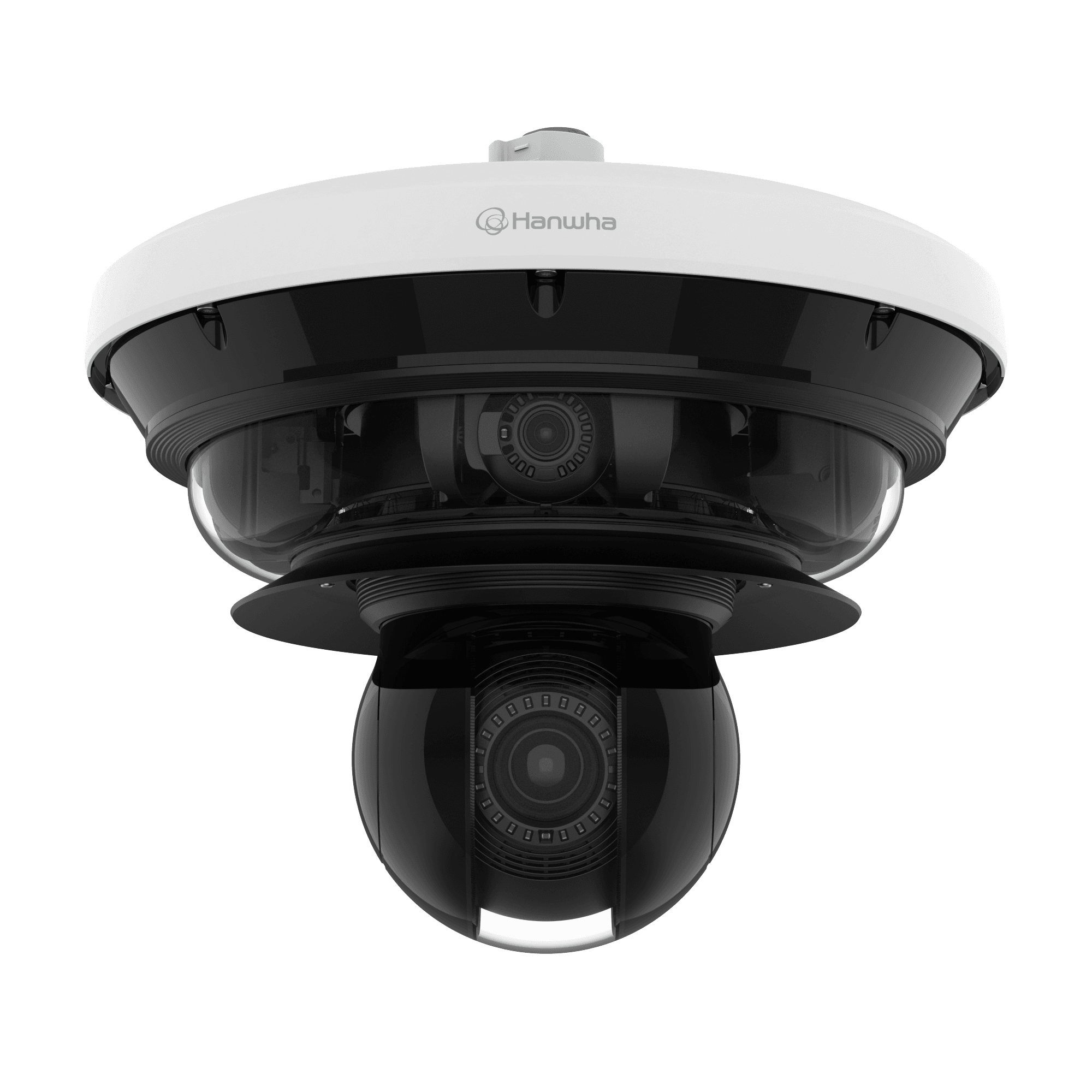

MULTI-SENSORMulti-sensor + 40X PTZ.
PNM-C34404RQPZ
Multi-sensor + 40X PTZ.
Four 4K views and a 40X PTZ, in one dome.
Four independently positionable 4MP PTRZ channels deliver 360° situational awareness while a built-in 2MP 40X PTZ zooms in and tracks the action — linked automatically by AI. One mount, one cable, total perimeter coverage with detail at distance.
Key Capabilities
Built around the way you actually deploy.
- 4 × 4MP (3840 × 2160) PTRZ channels for 360° coverage
- Built-in 2MP 40X optical-zoom PTZ camera
- AI smart zoom — automatic PTZ linkage to detected events
- Advanced Hand over — event-triggered PTZ execution
- PTZ IR to 200m · per-channel IR to 20m
- Endless 360° pan at up to 700°/sec · 300 presets
- TPM 2.0 with FIPS 140-2 Level 2 cybersecurity
- IP66 · IK10 · NEMA 4X · rated to -40°C
AI & Analytics
Edge intelligence, built in.
This Hanwha Vision camera runs AI analytics on-device — alerts and metadata generated at the edge, not in the cloud.
- Object detection & classification — person, face, vehicle, license plate
- Attribute search — vehicle type (car / bus / truck / motorcycle / bicycle)
- Line crossing
- Loitering
- AI smart zoom with automatic PTZ linkage
- Advanced Hand over — event-triggered PTZ tracking
- 360° analytics across all four channels
Deployments
Where this camera earns its keep.
Large-area perimeter surveillanceIntersections & traffic monitoringParking structures & lotsCampus & venue wide-area coverageCritical infrastructure with detail-at-distance
Specifications
The whole sheet.
Multi-directional Channels (×4)
- Imaging Device
- 1/2.8″ CMOS
- Resolution
- 4MP (3840 × 2160) per channel
- Lens
- 3.3 – 5.7mm · 1.7X zoom (PTRZ)
- Field of View
- H109° – H56°
- Max Frame Rate
- 15 fps (H.265 / H.264)
- IR Range
- 20m (850nm)
- Min Object Distance
- 1.3m
PTZ Channel
- Resolution
- 2MP (1920 × 1080)
- Lens
- 4.25 – 170mm · 40X optical zoom
- Field of View
- H65.66° – H1.88°
- Max Frame Rate
- 60 fps
- IR Range
- Up to 200m
- Min Object Distance
- 5m
PTZ Movement
- Pan
- 0° – 360° endless · max 700°/sec
- Tilt
- 0° – 110°
- Channel Rotate
- 0° – 90° per channel
- Presets
- 300 · ±0.1° accuracy
- Auto Functions
- Smart zoom · Advanced Hand over
Video & Audio
- Compression
- H.265 / H.264 / MJPEG
- Image Processing
- WiseNR II · WiseStream III · Prefer Shutter Control
- Min Illumination
- Color: 0.1 lux · B/W: 0.01 lux (4CH)
Connectivity & Storage
- Edge Storage
- microSD up to 2TB total
- Network Security
- IEEE 802.1X · HTTPS · WSS · SRTP
Power & Environment
- Power Input
- PoE++ (IEEE 802.3bt Type 4, Class 8)
- Consumption
- Typ. 45W · Max 64W
- Operating Temperature
- -40°C ~ +50°C
- Ingress Protection
- IP66 · IK10 · NEMA 4X
- Dimensions
- Ø379.8 × 301.9mm
- Weight
- 7.9 kg
- Housing
- Aluminum · White (RAL9003)
Security & Compliance
- Cybersecurity
- TPM 2.0 · FIPS 140-2 Level 2
- Manufacturer
- Hanwha Vision
